TECHNICAL INFORMATION

Wooden Entrance Doors VETRO - Technical data

STANDARD VERSION

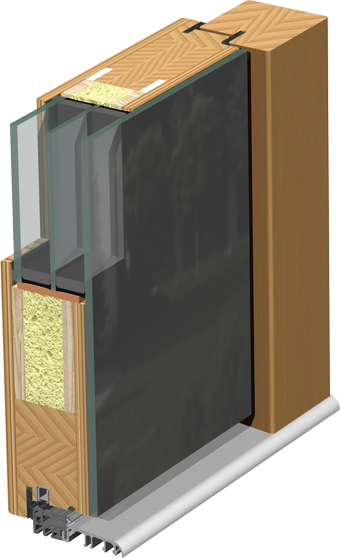

• door leaf is made of a special multi-layer panel reinforced with a solid wood frame and integrated stabilizers that prevent warping. Thermal conductivity of UP plate = 0.93 W/m2K.
• excellent thermal insulation UD (depending on the model, spruce) = 1.1 - 1.3 W/(m2K)
• three-layer insulating glass, Ug=0.7 W/(m2K), double-sided safety - tempered, black enamel on transparent or gray glass
• decorative grooves and applications only on the outside
• double sealing and thermo-insulating threshold TB75

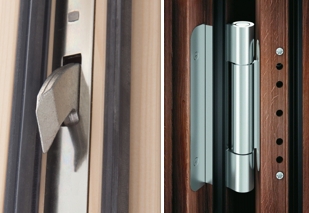

• 3-point locking and strong 3D adjustable attachments
• type of wood: spruce, oak, larch
• door leaf thickness from 77 mm, frame thickness 68 mm

SPECIAL VERSION

• dimensions up to 125 x 270 cm
• possible production of transom and side elements
• certain models possible in low-energy version UD < 1.0 W/(m2K)
• certain models possible in passive version UD < 0.8 W/(m2K)
