TECHNICAL INFORMATION

Wood-Aluminum Entrance Doors MODERN - technical data

STANDARD VERSION

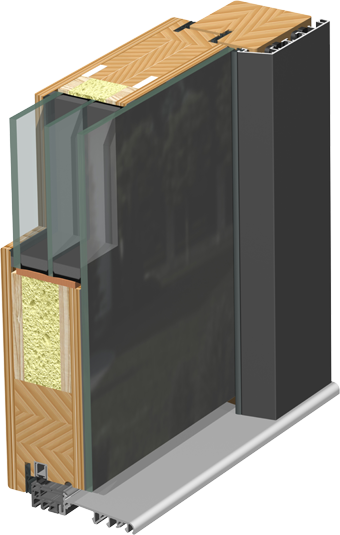

• door leaf is made of a special multi-layer panel reinforced with a solid wood frame and integrated stabilizers to prevent warping. Outside, aluminum plate and profiles on the door leaf and frame. Thermal conductivity of UP panel = 0.93 W/m2K.
• excellent thermal insulation UD (depending on the model, spruce) = 1.1 - 1.3 W/(m2K)
• triple-layer insulating glass, Ug=0.7 W/(m2K), double-sided safety - tempered, black enamel on transparent or gray glass
• applications and decorative grooves on the outside only
• triple seal and thermo-insulating threshold TB90
• 3-point locking and strong 3D adjustable hinges
• type of wood: spruce, oak, larch
• door leaf thickness from 74 mm, frame thickness from 83 mm

SPECIAL VERSION

• dimensions up to 125 x 270 cm
• possible production of transom and side elements
• certain models possible in low-energy version UD < 1.0 W/(m2K)
• certain models possible in passive version UD < 0.8 W/(m2K)
